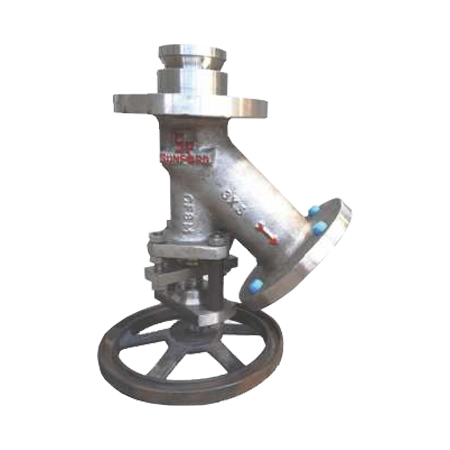

Y Type Flush Bottom Valve F/Ends Class 150/300
Y Type Flush Bottom Valve F/Ends Class 150/300
Design & Manufacturer Standards
| Flanged End Connections | ASME B 16.5 |
|---|---|
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat | 23 Kg/cm² | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat | 58 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure Test | 08 Kg/cm² | |

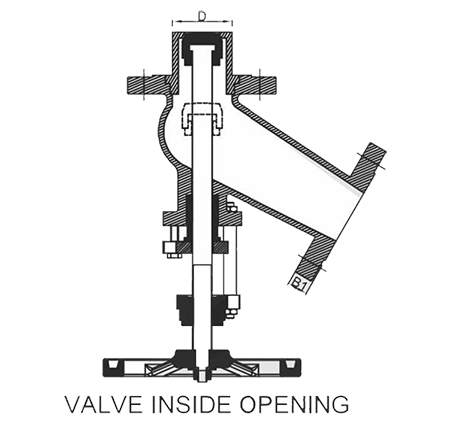

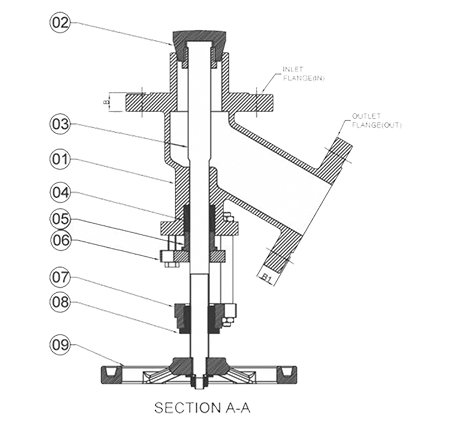

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM S.S. 304, S.S. 316, ASTM A216 WCB |
| 2 | Plug | AISI S.S. 304, S.S. 316 |
| 3 | Stem | AISI S.S. 304, S.S. 316 |
| 4 | Gland Packing | PTFE, GRAFOILE |
| 5 | Gland | CS, S.S. 304 |
| 6 | Gland Flange | CS, S.S. 304 |
| 7 | Yoke Bush Housing | CS, S.S. 304 |
| 8 | Yoke Bush | GUNMETAL / EN8 / D2 / SGI |
| 9 | Hand Wheel | SGI, S.S. 304 |
| Size (MM) | Flange Dimensions | Flange Dimensions | |||
|---|---|---|---|---|---|
| IN | IN | I | B | I | QTY |
| 25 | 20 | 25 NB ASA 150# | 11 | 20 NB ASA 150# | 11 |
| 25 | 25 | 25 NB ASA 150# | 11 | 25 NB ASA 150# | 11 |
| 40 | 25 | 40 NB ASA 150# | 14 | 25 NB ASA 150# | 11 |
| 40 | 40 | 40 NB ASA 150# | 14 | 40 NB ASA 150# | 14 |
| 50 | 40 | 50 NB ASA 150# | 16 | 40 NB ASA 150# | 14 |
| 50 | 50 | 50 NB ASA 150# | 16 | 50 NB ASA 150# | 16 |
| 80 | 50 | 80 NB ASA 150# | 19 | 50 NB ASA 150# | 16 |
| 80 | 80 | 80 NB ASA 150# | 19 | 80 NB ASA 150# | 19 |
| 100 | 80 | 100 NB ASA 150# | 24 | 80 NB ASA 150# | 19 |
| 100 | 100 | 100 NB ASA 150# | 24 | 100 NB ASA 150# | 24 |
| 150 | 100 | 150 NB ASA 150# | 25 | 100 NB ASA 150# | 24 |
| 150 | 150 | 150 NB ASA 150# | 25 | 150 NB ASA 150# | 25 |
| 200 | 150 | 200 NB ASA 150# | 28 | 150 NB ASA 150# | 25 |
| 200 | 200 | 200 NB ASA 150# | 28 | 200 NB ASA 150# | 28 |
| 250 | 200 | 250 NB ASA 150# | 30 | 250 NB ASA 150# | 28 |
