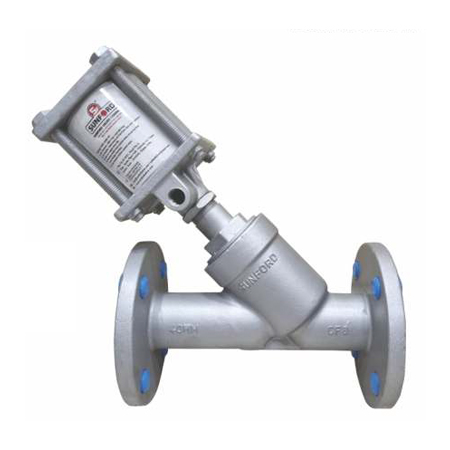

Y Type Control Valve Class 150 (Soft Seated - On/Off)
Y Type Control Valve Class 150 (Soft Seated - On/Off)
Design & Manufacturer Standards
| Face to Face |
As per below table |
| Flanged End Connections |
ASME B 16.5 |
| Pressure Temp. Ratings |
ASME B 16.34 |
| Butt Weld Dimension |
API B 16.25 |
| Inspection & Testing |
API 598 / BS 5146 |

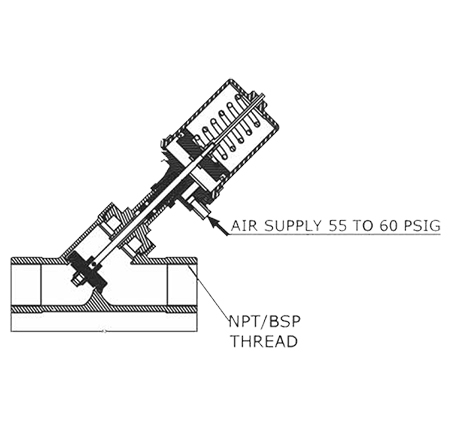

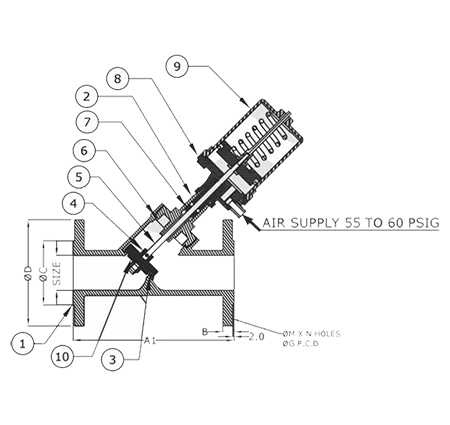

| Part List |
| Sr. No. |
Item Description |
Material |
| 1 |
Body |
SS 304, SS 316 |
| 2 |
Bonnet |
SS 304, SS 316 |
| 3 |
Seat |
PTFE |
| 4 |
Plug |
SS 304 |
| 5 |
Stem |
SS 304, SS 316 |
| 6 |
Gasket |
PTFE, Graphite |
| 7 |
Gland |
PTFE, Grafoil |
| 8 |
Bottom Plate |
SS 304 |
| 9 |
Cylinder |
Aluminum |
| 10 |
Nut |
SS 304 |
| ANSI Class 150 - Dimensions |
| Size |
A1 |
A2 |
B |
∅C |
∅D |
∅M |
∅M |
∅G |
| 15 |
128 |
73 |
9.6 |
36 |
90 |
16 |
4 |
60.3 |
| 20 |
148 |
73 |
10.6 |
43 |
100 |
16 |
4 |
69.9 |
| 25 |
167 |
91 |
11.1 |
51 |
110 |
16 |
4 |
79.4 |
| 40 |
200 |
130 |
14.3 |
73 |
125 |
16 |
4 |
98.4 |
| 50 |
235 |
151 |
16 |
92 |
150 |
16 |
4 |
120.7 |
| 65 |
279 |
- |
17.5 |
105 |
180 |
19 |
4 |
139.7 |
| 80 |
310 |
- |
19.1 |
127 |
190 |
19 |
4 |
152.4 |
