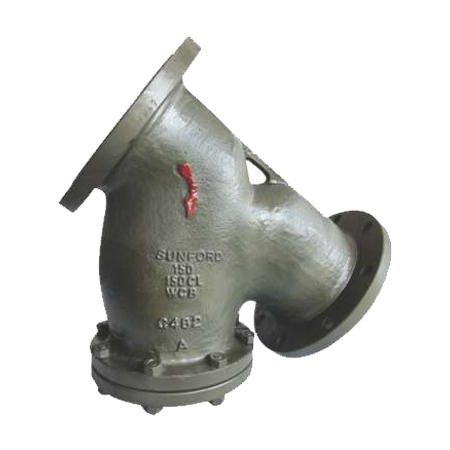

Stainer Y Type Class 150/300/600
Stainer Y Type Class 150/300/600
Design & Manufacturer Standards
| Valve Design / Shell Thickness | ISO 15761 |
|---|---|
| Face to Face | ASME B 16.10 |
| Socket / Screwed Nutt End Connection | ASME B 16.11 / ASME B 1.20.1 / ASME B 16.25 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
Special Features of Sunford Valves
- Bolted Cover
- Very Low Pressure Drop
- Higher Filteration Area
- Double or Triple Layers Mesh
- Easy Maitenance
- High Performance
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat & Back Seat | - | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat & Back Seat | - | |
| Hydraulic Test Pressure 600# | ||
|---|---|---|
| Body | 150 Kg/cm² | |
| Seat & Back Seat | - | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure | 08 Kg/cm² | |

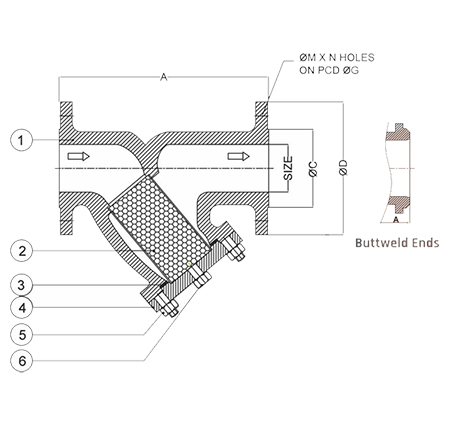

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A216 GR. WCB/A 352 LCB/A 217 WC6/A 351 CF8 / CF8M IS 210 GR 220 |
| 2 | Screen | S.S. 304 40MESH X 37 SWG |
| 3 | Gasket | SPIRAL WOULD SS304 |
| 4 | Cover | ASTM A 216 GR. WCB/A 352 LCB/ A 217 WC6 / A 351 CF8 / CF8M / IS 210 GR 220 |
| 5 | Stud & Nut | ASTM A 193 GR. B7 / 194 GR. 2H |
| 6 | Plug | C.S. / SS304 / SS316 |
| ASME CLASS 150 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 40 | 165 | 17.3 | 73 | 125 | 16 | 4 | 98.5 |
| 50 | 203 | 19 | 92 | 152 | 19 | 4 | 121 |
| 65 | 216 | 22.3 | 105 | 180 | 19 | 4 | 140 |
| 80 | 243 | 24 | 127 | 190 | 19 | 4 | 152 |
| 100 | 292 | 24 | 157 | 229 | 19 | 8 | 191 |
| 150 | 406 | 25 | 278 | 280 | 22 | 8 | 241 |
| 200 | 495 | 28.5 | 270 | 343 | 22 | 8 | 298 |
| 250 | 622 | 30 | 324 | 406 | 25 | 12 | 362 |
| 300 | 699 | 32 | 381 | 483 | 25 | 12 | 432 |
| 350 | 787 | 35 | 413 | 533 | 28 | 16 | 476 |
| 400 | 914 | 37 | 470 | 540 | 28 | 16 | 597 |
| ASME CLASS 300 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 40 | 229 | 20.5 | 73 | 155 | 22 | 4 | 114 |
| 50 | 267 | 22 | 92 | 165 | 19 | 8 | 127 |
| 65 | 292 | 25 | 105 | 190 | 22 | 8 | 149 |
| 80 | 318 | 28.5 | 127 | 210 | 22 | 8 | 168 |
| 100 | 356 | 32 | 157 | 255 | 22 | 8 | 200 |
| 150 | 444 | 36.5 | 216 | 320 | 22 | 12 | 270 |
| 200 | 559 | 41 | 270 | 380 | 25 | 12 | 330 |
| 250 | 622 | 47.5 | 324 | 445 | 29 | 16 | 387 |
| 300 | 711 | 51 | 381 | 520 | 32 | 16 | 451 |
| 350 | 838 | 54 | 413 | 583 | 32 | 20 | 564 |
| 400 | 864 | 57 | 470 | 648 | 35 | 20 | 572 |
