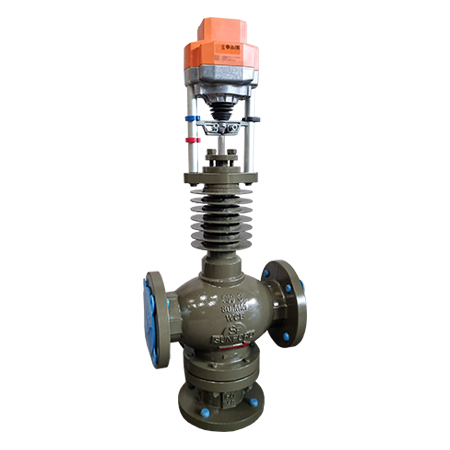

Motorized / Electric Actuated
Motorized / Electric Actuated
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS 5155 / API 609 / EN 596 / IS 13095 |
|---|---|
| Face to Face | BS 5155 / ISO 5752 / API 609 |
| Flanged End Connections | ASME B 16.5 / BS 10 TAB D & E IS 6392 NP 0.6 / 1.0 / 1.6 |
| Inspection & Testing | API 598 / BS 6755 Part - 1 / EN 12266-1 |
| Pressure Rating | Hydrostatic Shell Test | Hydrostatic Seat Test | ||
|---|---|---|---|---|
| Kg/cm² | PSI | Kg/cm² | PSI | |
| PN16 | 22 | 310 | 22 | 310 |
| PN10 | 15 | 210 | 15 | 210 |
| Seat Temperature | ||
|---|---|---|
| Seat Type | Tenperature Range | |
| Min | Max | |
| NITRILE | -13°F (-25°C) | 212°F (100°C) |
| EPDM | -13°F (-25°C) | 250°F (120°C) |
| Silcion | -58°F (-50°C) | 356°F (180°C) |
| Viton | -23°F (-5°C) | 392°F (200°C) |
| Hypalon | -4°F (-20°C) | 250°F (120°C) |
| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A216 GR. WCB / ASTM A351 GR. CF8 / CF8M |
| 2 | Bonnet | ASTM A216 GR. WCB / ASTM A351 GR. CF8 / CF8M |
| 3 | Seat | AISI 304 / 316 / 410 |
| 4 | Plug | AISI 304 / 316 / 410 |
| 5 | Tail Piece | ASTM A216 GR. WCB / ASTM A351 GR. CF8 / CF8M |
| 6 | Stem | AISI 304 / 316 |
| 7 | Gasket | SS 304 SPW + Graphite |
| 8 | Gland | Grafoil |
| 9 | Check Nut | MS |
| 10 | Gland Flange | AISI 304 / 316 / 410 |
| 11 | Stand | ASTM A216 GR. WCB |
| 12 | Setting Nut | ASTM A193 B7/A 194 2H |
| 13 | Stud & Nut | ASTM A193 B7 / A 194 2H |
| 14 | Electric Acutator | Alluminium / MS Dyecast |
| ASME CLASS 150 - Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | A | H | B | ∅C | ∅D | ∅M | N | ∅G |
| 25 | 186 | 135 | 11.1 | 50.8 | 110 | 16 | 4 | 79 |
| 40 | 223 | 178 | 14.3 | 73.0 | 125 | 16 | 4 | 98.5 |
| 50 | 254 | 190 | 16 | 92.1 | 150 | 19 | 4 | 121 |
| 65 | 279 | 212 | 17.5 | 104.8 | 180 | 19 | 4 | 140 |
| 80 | 300 | 220 | 19 | 127.0 | 190 | 19 | 4 | 152 |
| 100 | 365 | 285 | 24 | 157.2 | 230 | 19 | 8 | 191 |
| 150 | 406 | 350 | 25 | 215.9 | 280 | 22 | 8 | 241 |
| 200 | 495 | 355 | 28.5 | 270 | 345 | 22 | 8 | 298 |
