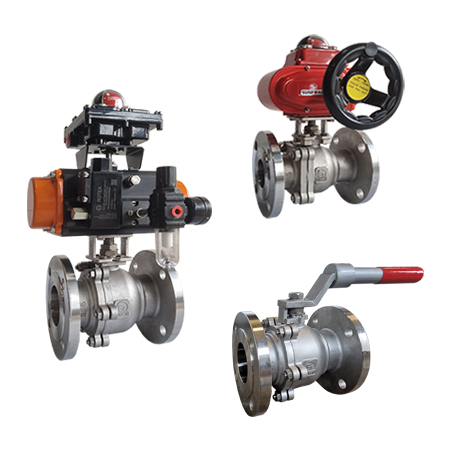

Ball Valve Full Bore 2 Pcs F/Ends Class 150/300
Ball Valve Full Bore 2 Pcs F/Ends Class 150/300
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS5351 / API 6D |
|---|---|
| Face to Face | ANSI B 16.10 / API 6D |
| Flanged End Connections | ASME B 16.5 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
| Fire Safe | API 607 |
| Butt Weld Ends | ASME B 16.25 |
Special Features of Sunford Valves
- Extra high cycle life provide by spherical segment stem.
- Split body design facilitates inspection and repair.
- Investment cast body (investment casting) construction.
- Blow-out proof stem.
- Anti-static device.
- ISO 5211 mounting dimensions for easy automation.
- Fire safe in compliance with Api 607.
- Triple stem sealing above 2" size.
- Air cushioned handle sleeve for comfortable manual operation.
- Double body seal feature to suitable for high pressure.
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat | 23 Kg/cm² | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat | 58 Kg/cm² | |
| Hydraulic Test Pressure 600# | ||
|---|---|---|
| Body | 150 Kg/cm² | |
| Seat | 110 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure | 08 Kg/cm² | |
| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A 216 GR. WCB / A 352 LCB / A 217 WC6 / A 351 CF8 / CF8M / CF3 /CF 3M |
| 2 | Side Piece | |
| 3 | Ball | AISI 304/ 316 / ASTM A351 GR. CF8/CF8M |
| 4 | Seat Ring | VIRGIN PTFE / CFT / GFT |
| 5 | Body Ring | VIRGIN PTFE / CFT / GFT |
| 6 | Gland Ring | VIRGIN PTFE / CFT / GFT |
| 7 | Stem | SS 304 / SS 316 |
| 8 | Gland | SS 304 / SS 316 |
| 9 | Stem Seal | VIRGIN PTFE / CFT / GFT |
| 10 | Lever | AISI 202/304/316/ M.S FABRICATED |
| 11 | Lever Sleeve | P.V.C. |
| 12 | Lever Nut | S.S. 304 / 316 |
| 13 | Stud & Nut | S.S. 304 / 316 |
| 14 | Belly Velly Washer | S.S. 304 / 316 |

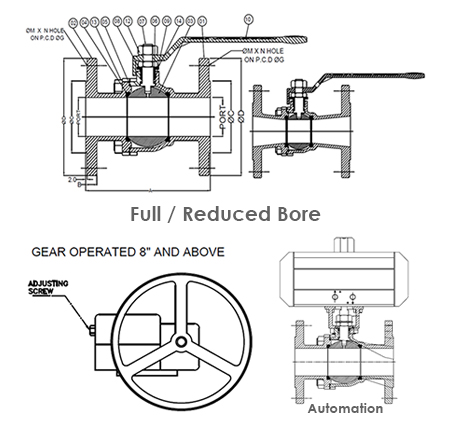

| ASME CLASS 150 Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 15 | 108 | 9.6 | 34.9 | 90 | 16 | 4 | 60.3 |
| 20 | 117 | 10.6 | 42.9 | 100 | 16 | 4 | 69.9 |
| 25 | 127 | 11 | 50.8 | 110 | 16 | 4 | 79.4 |
| 40 | 165 | 14.3 | 73 | 125 | 16 | 4 | 98.4 |
| 50 | 178 | 16 | 92.1 | 150 | 19 | 4 | 120.7 |
| 65 | 190 | 17.5 | 104.8 | 180 | 19 | 4 | 139.7 |
| 80 | 203 | 19 | 127 | 190 | 19 | 4 | 152.4 |
| 100 | 229 | 24 | 157.2 | 230 | 19 | 8 | 190.5 |
| 125 | 254 | 24 | 186 | 255 | 22 | 8 | 216 |
| 150 | 394 | 25 | 215.9 | 280 | 22 | 8 | 241.3 |
