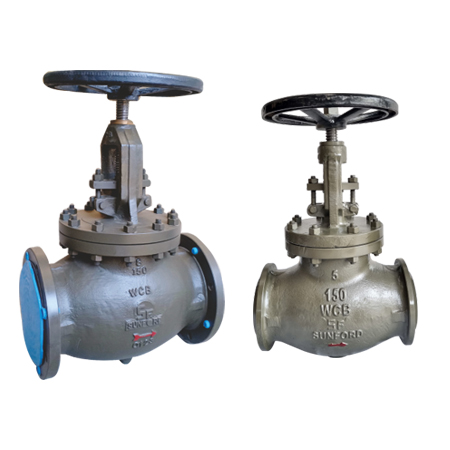

Globe Valve Class 150/300/600
Globe Valve Class 150/300/600
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS 1873 |
|---|---|
| Face to Face | ASME B 16.10 |
| Flanged End Connections | ASME B 16.5 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Butt Weld Dimension | API B 16.25 |
| Inspection & Testing | API 598 |
Special Features of Sunford Valves
- Full Port Design
- Plug type disc
- Bolted Bonnet
- Outside Screw & Yoke Design
- Low Operating Torque
- Welded / Renewable seatrings
- SS+Graphite Gasket
- Backseat Arrangement
- Online Gland Change
- Low Pressure Drop
- Rising Stem & Handwheel
- Actuator / Automation available.
- Stelliting on seat and plug if required.
Available Modification
- Trim Changes
- End Connection Modification
- By-Pass
- Handwheel Extention
- Customer Specified Coatings
- Packing & Gasket Change
- Actuator Mounting
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat & Back Seat | 23 Kg/cm² | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat & Back Seat | 58 Kg/cm² | |
| Hydraulic Test Pressure 600# | ||
|---|---|---|
| Body | 150 Kg/cm² | |
| Seat & Back Seat | 110 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure | 08 Kg/cm² | |

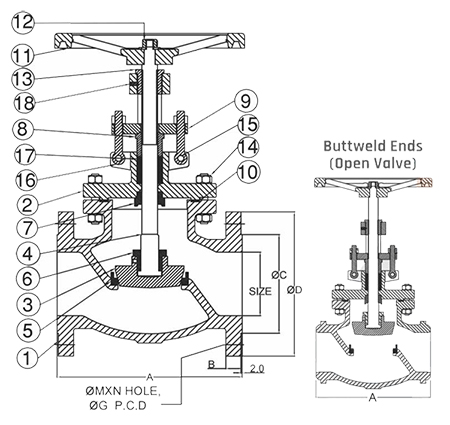

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A 216 GR. WCB/A 352 LCB/A 217 WC6/A 351 CF8 / CF8M IS 210 GR 220 |
| 2 | Bonnet | ASTM A 216 GR. WCB/A 352 LCB/A 217 WC6/A 351 CF8 / CF8M IS 210 GR 220 |
| 3 | Disc | AISI 410 (13% CR.) / CA15 / 304 / 316 |
| 4 | Spindle | AISI 410 / 304 / 316 |
| 5 | Seatring | AISI 410 (13% CR.) / CA15 / 304 / 316 |
| 6 | Disc Nut | AISI 410 / 304 / 316 |
| 7 | Backseat Bush | AISI 410 / 304 / 316 |
| 8 | Gland Bush | AISI 410 / 304 / 316 |
| 9 | Gland Flange | C.S |
| 10 | Gasket | SP Wound SS316 Graphoil |
| 11 | Hand Wheel | S.G. Iron |
| 13 | Hand Wheel Nut | ASTM A 194 GR. 2H |
| 12 | Yoke Bush | AL. BRONZE / GM / D2 / EN8 |
| 14 | Stud Nut | ASTM A 193 GR.B7/2H |
| 15 | Bolt Nut | ASTM A 194 GR. 2H |
| 16 | Eye Bolt & Nut | ASTM A 194 GR. 2H |
| 17 | Gland Packing | GRAFOIL / GRAPHITE MOULDED RING |
| 18 | Gurb Screw | C.S |
| ASME CLASS 150 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 15 | 108 | 9.6 | 34.9 | 90 | 16 | 4 | 60.3 |
| 20 | 117 | 10.6 | 42.9 | 100 | 16 | 4 | 69.3 |
| 25 | 127 | 11.1 | 51 | 108 | 16 | 4 | 79 |
| 40 | 165 | 14.3 | 73 | 125 | 16 | 4 | 98.5 |
| 50 | 203 | 16 | 92 | 150 | 19 | 4 | 121 |
| 65 | 216 | 17.5 | 105 | 180 | 19 | 4 | 140 |
| 80 | 241 | 19.1 | 127 | 190 | 19 | 4 | 152 |
| 100 | 292 | 24 | 157 | 230 | 19 | 8 | 191 |
| 125 | 356 | 24 | 186 | 255 | 22 | 8 | 216 |
| 150 | 406 | 25 | 216 | 278 | 22 | 8 | 241 |
| 200 | 495 | 28.5 | 270 | 345 | 22 | 8 | 298 |
| 250 | 662 | 30 | 324 | 405 | 25 | 12 | 362 |
| 300 | 699 | 32 | 381 | 485 | 25 | 12 | 432 |
| ASME CLASS 300 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ∅C | ∅D | ∅M | N | ∅G |
| - | - | - | - | - | - | - | - |
| - | - | - | - | - | - | - | - |
| 25 | 203 | 17.5 | 51 | 125 | 19 | 4 | 89 |
| 40 | 229 | 20.5 | 73 | 155 | 22 | 4 | 114 |
| 50 | 267 | 22 | 92 | 165 | 19 | 8 | 127 |
| 65 | 292 | 25 | 105 | 190 | 22 | 8 | 149 |
| 80 | 318 | 28.5 | 127 | 210 | 22 | 8 | 168 |
| 100 | 356 | 32 | 157 | 255 | 22 | 8 | 200 |
| 125 | 400 | 35 | 186 | 280 | 22 | 8 | 235 |
| 150 | 444 | 36.5 | 216 | 320 | 22 | 12 | 330 |
| 200 | 559 | 41 | 270 | 380 | 25 | 12 | 330 |
| 250 | 622 | 47.5 | 324 | 445 | 29 | 16 | 387 |
| 300 | 711 | 51 | 381 | 520 | 32 | 16 | 451 |
