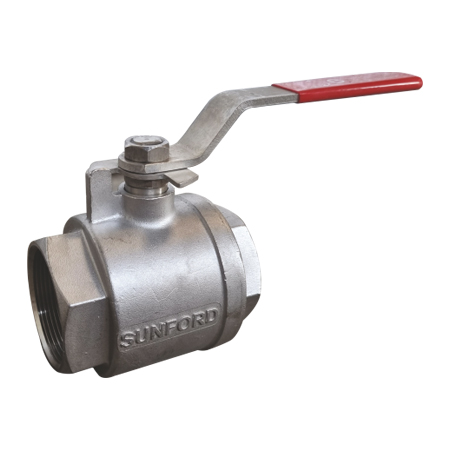

Ball Valves 1 Pcs Screw Ends
Ball Valves 1 Pcs Screw Ends
Design & Manufacturer Standards
| Valve Design / Shell Thickness |
BS5351 / API 6D |
| Face to Face |
ANSI B 16.10 / API 6D |
| Flanged End Connections |
ASME B 16.5 |
| Pressure Temp. Ratings |
ASME B 16.34 |
| Inspection & Testing |
API 598 |
| Fire Safe |
API 607 |
| Butt Weld Ends |
ASME B 16.25 |
| Hydraulic Test Pressure |
| Body |
32 Kg/cm² |
| Seat Test |
23 Kg/cm² |
| Air Test |
07 Kg/cm² |

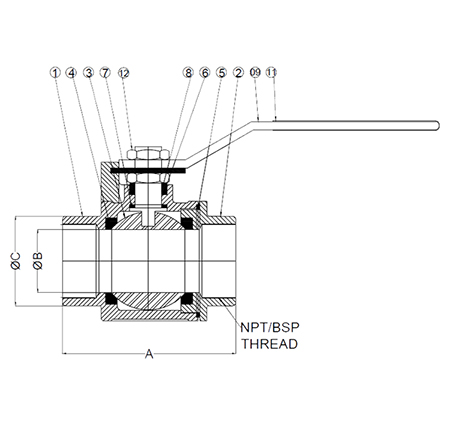

| Dimensions |
| Size |
A |
∅B |
∅C |
Thread (Female) |
| 15 |
65 |
12.5 |
26 |
BSP |
| 20 |
72 |
19 |
32 |
BSP |
| 25 |
84 |
25 |
40 |
BSP |
| 40 |
100 |
38 |
56 |
BSP |
| 50 |
112 |
50 |
66 |
BSP |
| Part List |
| Sr. No. |
Item Description |
Material |
| 1 |
Body |
ASTM A351 GR. CF8/CF8M |
| 2 |
Side Piece |
ASTM A351 GR. CF8/CF8M |
| 3 |
Ball |
ASTM A351 GR. CF8/CF8M |
| 4 |
Seat Ring |
VIRGIN PTFE / CFT / GFT |
| 5 |
Body Ring |
VIRGIN PTFE / CFT / GFT |
| 6 |
Gland Ring |
VIRGIN PTFE / CFT / GFT |
| 7 |
Stem |
S.S. 304 / SS 316 |
| 8 |
Gland |
S.S. 304 / SS 316 |
| 10 |
Lever |
SS 304 / SS 316 |
| 11 |
Lever Sleeve |
P.V.C |
| 12 |
Lever Nut |
S.S. 304 / 316 |
