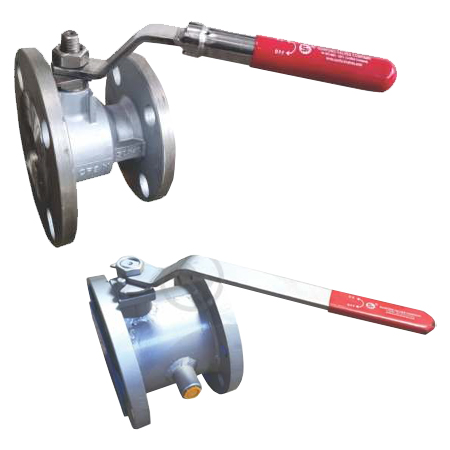

Flush Bottom Ball Valves Class 150/300
Flush Bottom Ball Valves Class 150/300
Design & Manufacturer Standards
| Testing & Inspection STD. | API 6D / API 598 |
|---|---|
| Design & Manufacturing STF. | BS5351 / API 6D |
| Face to Face | ASME B 16.10 |
| End Connections | ANSI B 16.5 |
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat | 23 Kg/cm² | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat | 58 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure | 08 Kg/cm² | |

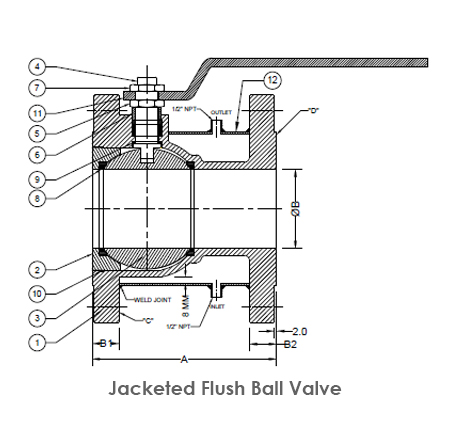

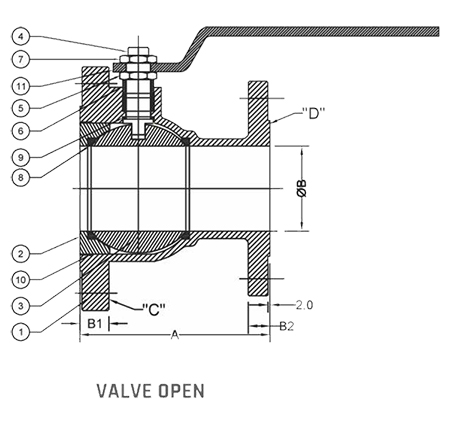

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A351 GR. CF8M / CF8 / WCB |
| 2 | End Nut | ASTM A351 GR. CF8M / CF8 / WCB |
| 3 | Ball | S.S. 316 / 304 |
| 4 | Stem | S.S. 316 / S.S. 304 |
| 5 | Gland Nut | S.S. 316 / S.S. 304 |
| 6 | Gland Bush | S.S. 316 / S.S. 304 |
| 7 | Lock Nut | S.S. 316 / S.S. 304 |
| 8 | Seat Ring | CFT / GFT / VIRGIN PTFE |
| 9 | Stem Seal | VIRGIN PTFE/CFT/GFT |
| 10 | Body SealRNT Ring | VIRGIN PTFE/CFT/GFT |
| 11 | Lever Nut | MS / SS |
| 12 | Valve Jacket | MS Fabricated |

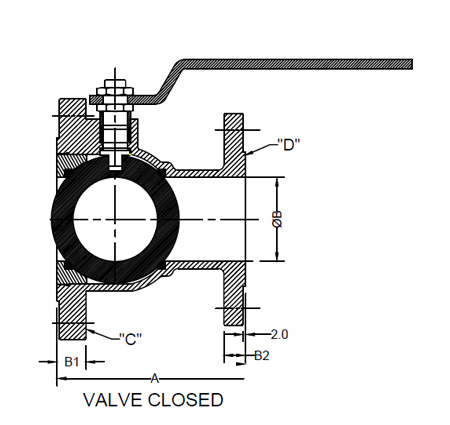

| Size | Dimensions | |||||
|---|---|---|---|---|---|---|
| MM | A | B | B | D-Flange | B1 | B2 |
| 15 x 25 | 70 | 12.5 | 25MM - 150# | 15MM - 150# | 11 | 11 |
| 20 x 25 | 76 | 20 | 25MM - 150# | 20MM - 150# | 11 | 11 |
| 25 x 40 | 76 | 25 | 40MM - 150# | 25MM - 150# | 11 | 11 |
| 40 x 50 | 105 | 38 | 50MM - 150# | 40MM - 150# | 14 | 14 |
| 50 x 80 | 125 | 50 | 80MM - 150# | 50MM - 150# | 16 | 16 |
| 80 x 100 | 155 | 76 | 100MM - 150# | 80MM - 150# | 19 | 19 |
| 100 x 150 | 176 | 100 | 150MM - 150# | 100MM - 150# | 24 | 24 |
