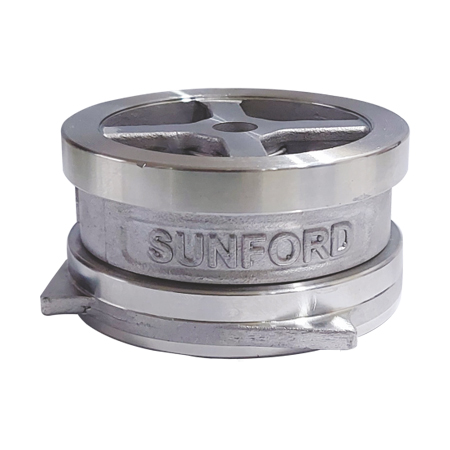

Disc Check Valve Class PN16 / PN40
Disc Check Valve PN16 / PN40
Design & Manufacturer Standards
| Valve Design / Shell Thickness | MFG. STD. |
|---|---|
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
Special Features of Sunford Valves
- Full Bore Design
- Robust Construction
- Easy Maintenance
- Low Pressure
| Hydraulic Test Pressure | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat | 23 Kg/cm² | |
| Air Test | 8 Kg/cm² | |
| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | S.S. 304 / S.S. 316 / S.S. 304L / S.S. 316L |
| 2 | Nut | S.S. 304 / S.S. 316 / S.S. 304L / S.S. 316L |
| 3 | Disc | S.S. 304 / S.S. 316 / S.S. 304L / S.S. 316L |
| 4 | Spring | Stainless Steel |
| 5 | Packing | Virgin PTFE |

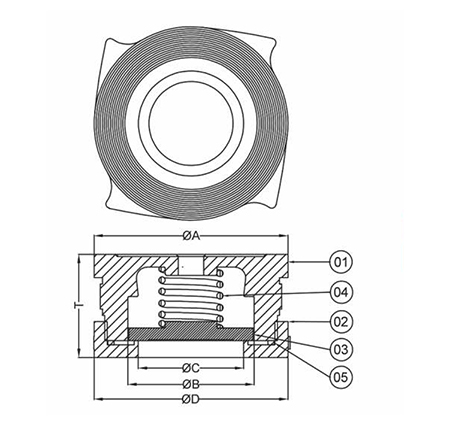

| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Size | ∅A | ∅B | ∅C | ∅D | T | ||
| 15 | 43 | 29 | 15 | 41 | 16 | ||
| 20 | 52 | 35 | 19 | 44 | 19 | ||
| 25 | 63 | 44 | 25 | 55 | 22 | ||
| 32 | 75 | 54 | 32 | 65 | 28 | ||
| 40 | 82 | 65 | 38 | 82 | 36 | ||
| 50 | 91 | 77 | 50 | 93 | 40 | ||
| 65 | 105 | 97 | 63 | 113 | 48 | ||
| 80 | 126 | 111 | 75 | 128 | 56 | ||
| 100 | 154 | 130 | 100 | 148 | 60 | ||
| 150 | 222 | 191 | 150 | 201 | 105 | ||
| 200 | 277 | 250 | 200 | 261 | 140 | ||
Industries We Serve
Chemical Industries
Pharmaceutical Industries
Petrochemical Plant
Textile Industries
OEM & Contrators
Pulp, Paper, Sugar Industries
Water Treatment Plant
