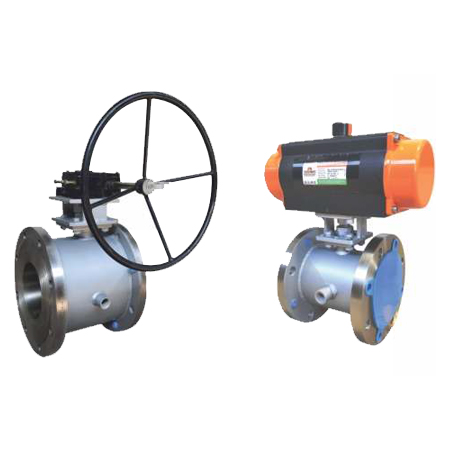

Jacketed Ball Valves
Jacketed Ball Valves
Design & Manufacturer Standards
| Valve Design / Shell Thickness | BS 5351 |
|---|---|
| Face to Face | ASME B 16.10 |
| Flanged End Connections | ASME B 16.5 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
| Hydraulic Test Pressure 150# | ||
|---|---|---|
| Body | 32 Kg/cm² | |
| Seat Test | 23 Kg/cm² | |
| Hydraulic Test Pressure 300# | ||
|---|---|---|
| Body | 78 Kg/cm² | |
| Seat Test | 58 Kg/cm² | |
| Hydraulic Test Pressure 600# | ||
|---|---|---|
| Body | 150 Kg/cm² | |
| Seat Test | 110 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure Test | 08 Kg/cm² | |

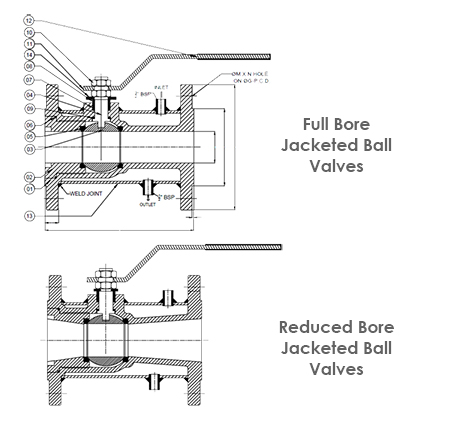

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | ASTM A216 WCB, ASTM A351 GR. CF8 / CF8M |
| 2 | Side Piece | |
| 3 | Ball | ASTM A351 GR. CF8/CF8M |
| 4 | Stem | S.S. 304 / 316 |
| 5 | Seat Ring | VIRGIN PTFE / CFT / GFT |
| 6 | Body Ring | VIRGIN PTFE / CFT / GFT |
| 7 | Gland Ring | VIRGIN PTFE / CFT / GFT |
| 8 | Gland | S.S. 304 / SS 316 |
| 9 | Stem Seal | VIRGIN PTFE |
| 10 | Lever Nut | S.S. 304 / 316 |
| 11 | Handle | S.S. 202 / S.S. 304 / S.S. 316 / S.S. 410 |
| 12 | Sleeve | P.V.C |
| 13 | Nut & Washer | CS |
| ANSI Class - 150 Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Port | A | B | ∅C | ∅D | ∅M | N | ∅G |
| 15 x 25 | 15 | 108 | 11 | 51 | 110 | 16 | 4 | 79 |
| 20 x 25 | 20 | 117 | 11 | 51 | 110 | 16 | 4 | 79 |
| 25 x 40 | 25 | 127 | 14.3 | 73 | 125 | 16 | 4 | 98.5 |
| 40 x 50 | 40 | 165 | 16 | 92 | 150 | 19 | 4 | 121 |
| 50 x 80 | 50 | 178 | 19 | 127 | 190 | 19 | 4 | 152 |
| 65 x 100 | 65 | 190 | 24 | 157 | 230 | 19 | 8 | 191 |
| 80 x 100 | 80 | 203 | 24 | 157 | 230 | 19 | 8 | 191 |
