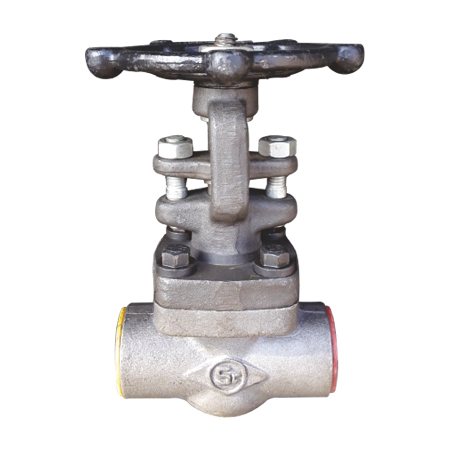

Forged Steel Gate Valve Class 800/1500/2500
Forged Steel Gate Valve Class 800/1500/2500
Design & Manufacturer Standards
| Valve Design / Shell Thickness | API 602 / ISO 15761 |
|---|---|
| Face to Face | ASME B 16.10 |
| Socket / Screwed / Butt End Connection | ASME B 16.11 / ASME B 1.20.1 / ASME B 16.25 |
| Pressure Temp. Ratings | ASME B 16.34 |
| Inspection & Testing | API 598 |
Special Features of Sunford Valves
- Outside screw & take (OS & Y).
- Bolted Bonnet.
- Choice of WB, Weld Bonnet.
- Single Wedge, Fully Guided.
- Renewable Seat Ring
- Yoke integral with bonnet.
- Rising stem and non-rising hand.
- SW, Screwed Ends.
- BW, Butt Weld ends.
- Flanged Ends
- SS + Graphite Gasket
| Hydraulic Test Pressure 800# | ||
|---|---|---|
| Body | 211 Kg/cm² | |
| Seat & Back Seat | 152 Kg/cm² | |
| Hydraulic Test Pressure 1500# | ||
|---|---|---|
| Body | 388 Kg/cm² | |
| Seat & Back Seat | 281 Kg/cm² | |
| Pneumatic Test Pressure | ||
|---|---|---|
| Air Pressure | 08 Kg/cm² | |

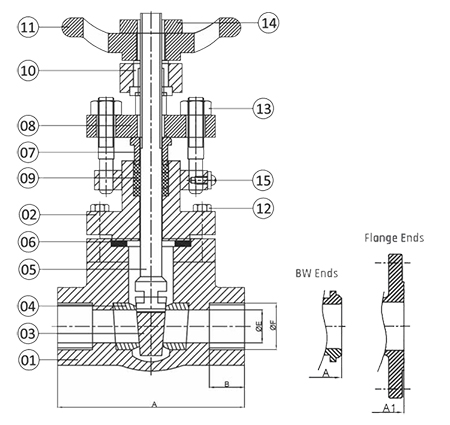

| Part List | ||
|---|---|---|
| Sr. No. | Item Description | Material |
| 1 | Body | Forge Steel ASTM A 105 / F 182 / F 304 / F 316 |
| 2 | Bonnet | Forge Steel ASTM A 105 / F 182 / F 304 / F 316 |
| 3 | Wedge | AISI 410 (13% CR.) / 304 / 316 |
| 4 | Seat Ring | AISI 410 (13% CR.) / 304 / 316 |
| 5 | Spindle | AISI 410 (13% CR.) / 304 / 316 |
| 6 | Gasket | SS 316 Spiral Wound + Graphite |
| 7 | Gland Bush | AISI 410 (410 CR.) |
| 8 | Gland Flange | ASTM A 105 |
| 9 | Gland Packing | Graphite Moulded Ring |
| 10 | Yoke Sleeve | M.S. |
| 11 | Hand Wheel | C.I. |
| 12 | Bolt & Nut | ASTM A 193 GR B7 |
| 13 | Eye Bolt | Forged C.S. |
| 14 | Handwheel Nut | C.S. |
| 15 | Screw & Washer | M.S. |
| ASME CLASS 800 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | ∅E | H[0] | H[C] | |||
| 15 | 87 | 9.5 | 152 | 130 | |||
| 20 | 92 | 12.7 | 158 | 133 | |||
| 25 | 106 | 17.5 | 189 | 155 | |||
| 40 | 127 | 28.6 | 239 | 200 | |||
| 50 | 142 | 36.5 | 288 | 235 | |||
| ASME CLASS 1500 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | ∅E | H[0] | H[C] | |||
| 15 | 92 | 9.5 | 158 | 133 | |||
| 20 | 106 | 12.7 | 189 | 155 | |||
| 25 | 127 | 15.9 | 239 | 200 | |||
| 40 | 142 | 27 | 288 | 235 | |||
| 50 | - | - | - | - | |||
| ASME CLASS 2500 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | ∅E | H[0] | H[C] | |||
| 15 | 106 | 7.0 | 189 | 155 | |||
| 20 | 127 | 12.5 | 239 | 200 | |||
| 25 | 142 | 15.5 | 288 | 235 | |||
| - | - | - | - | - | |||
| - | - | - | - | - | |||
